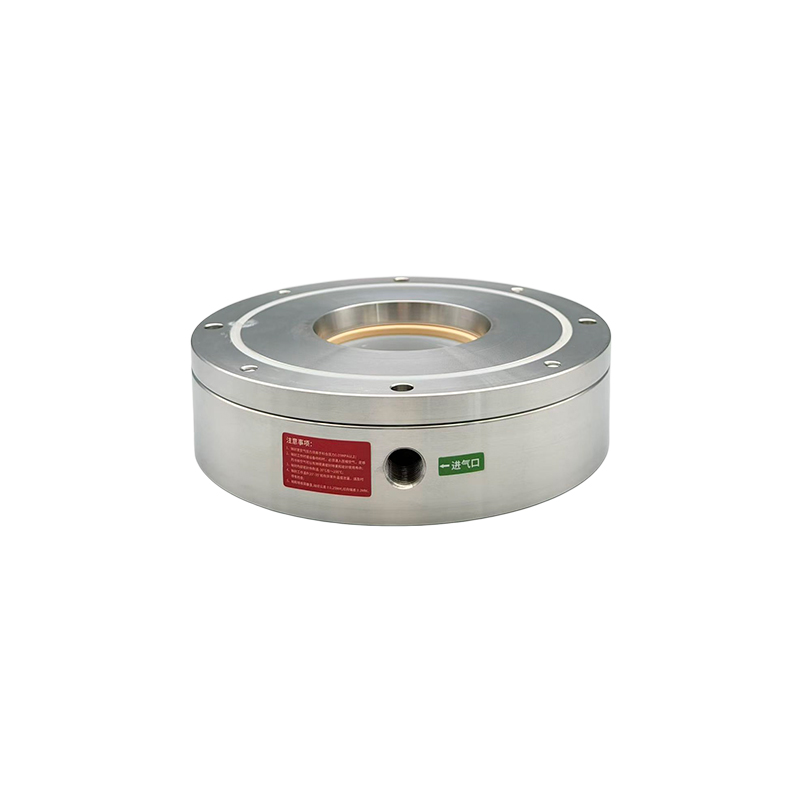

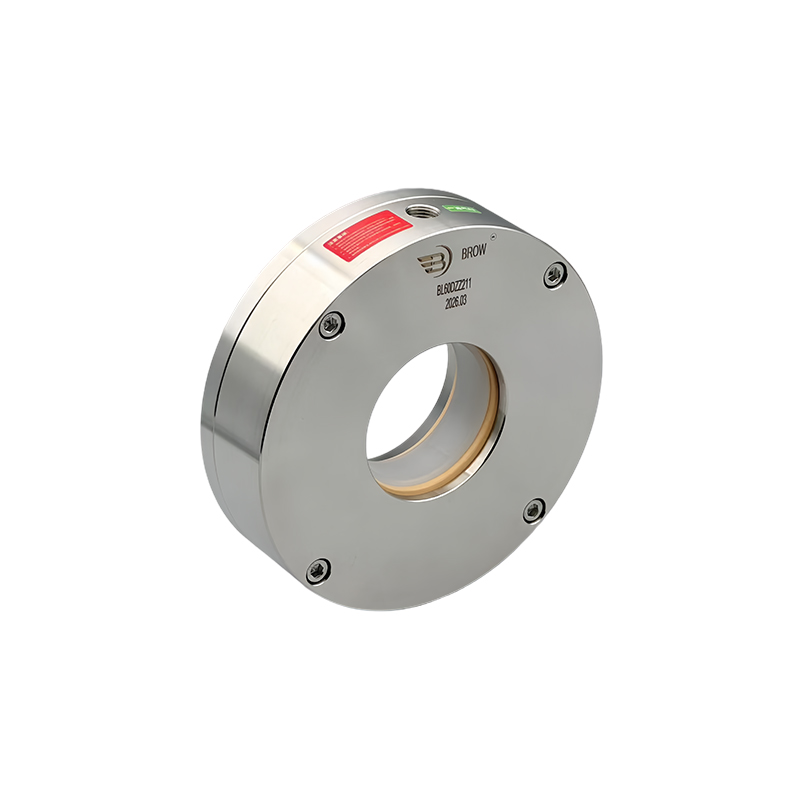

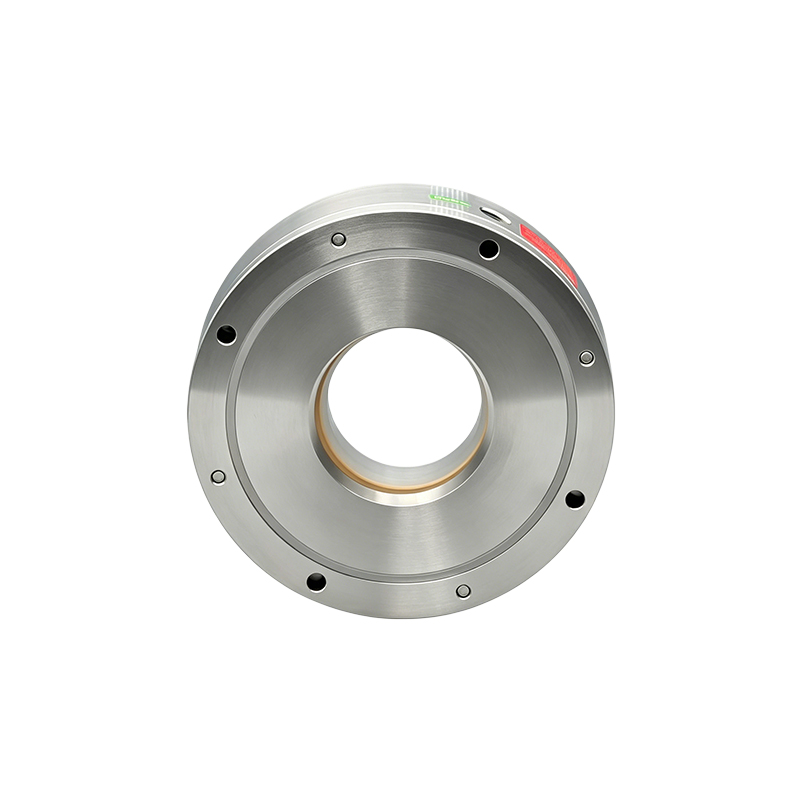

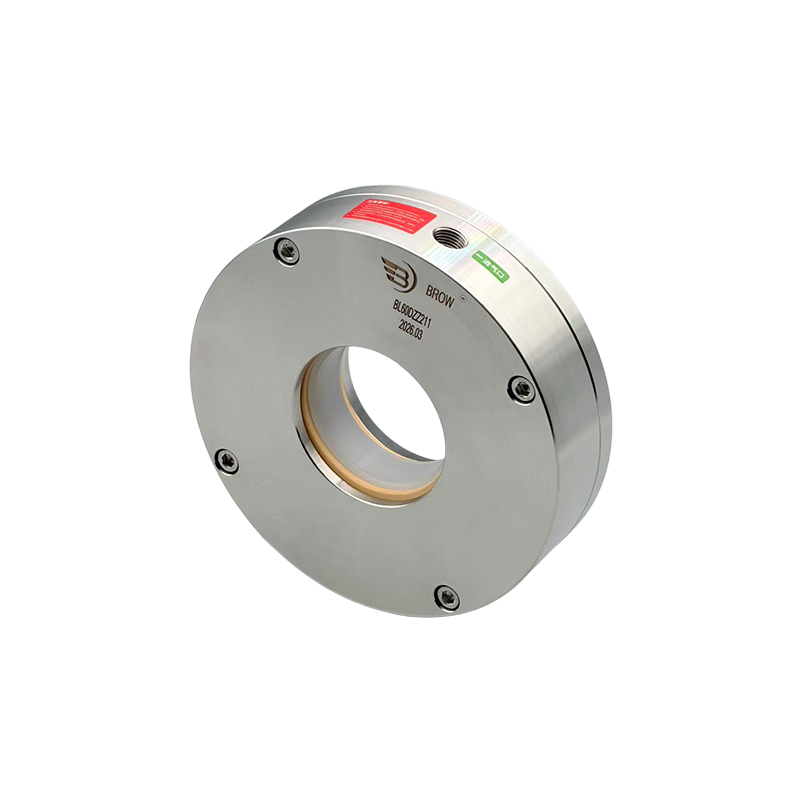

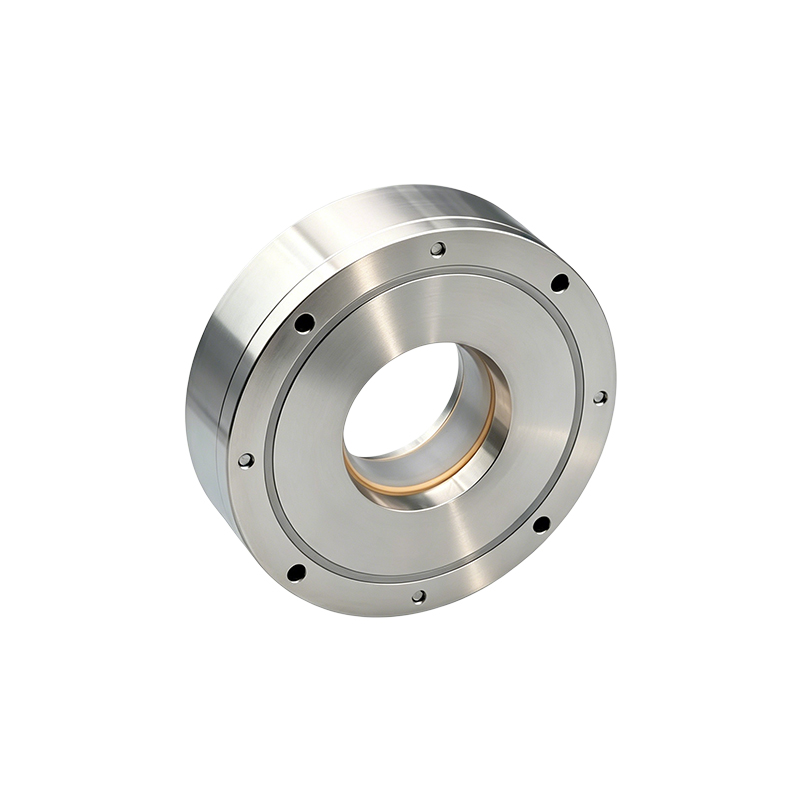

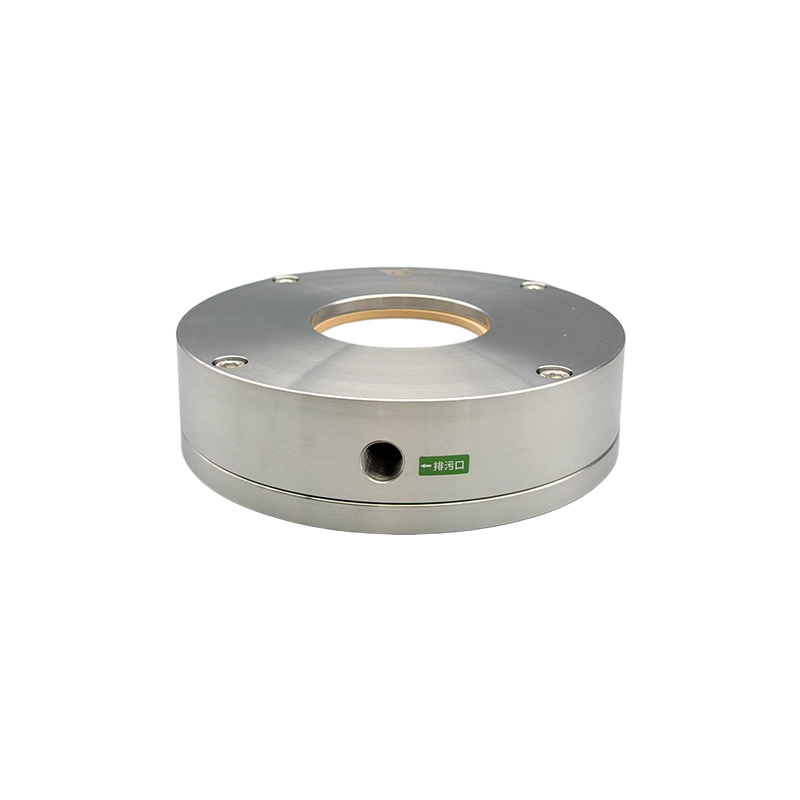

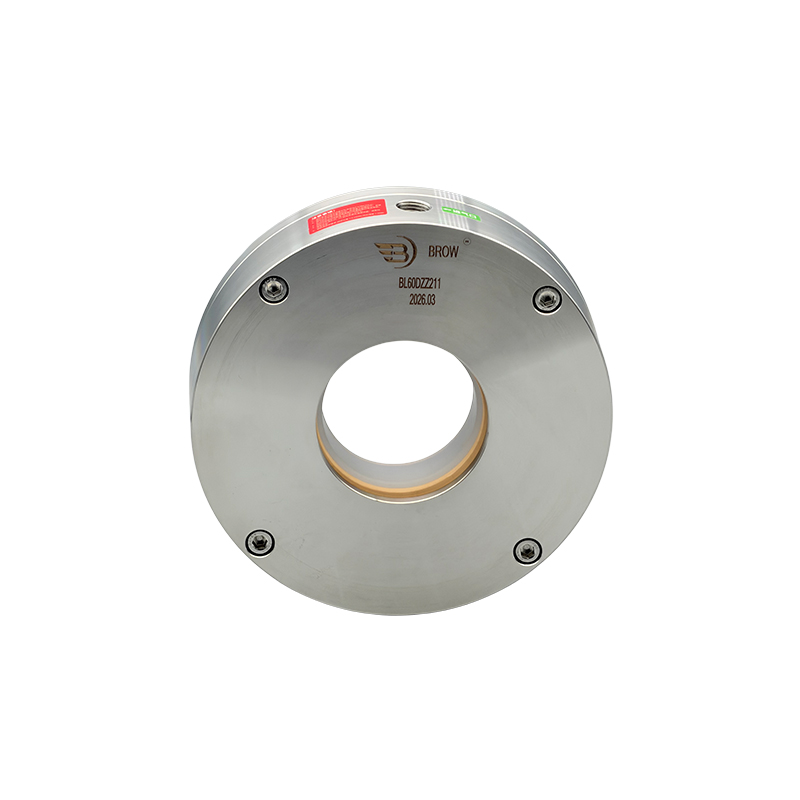

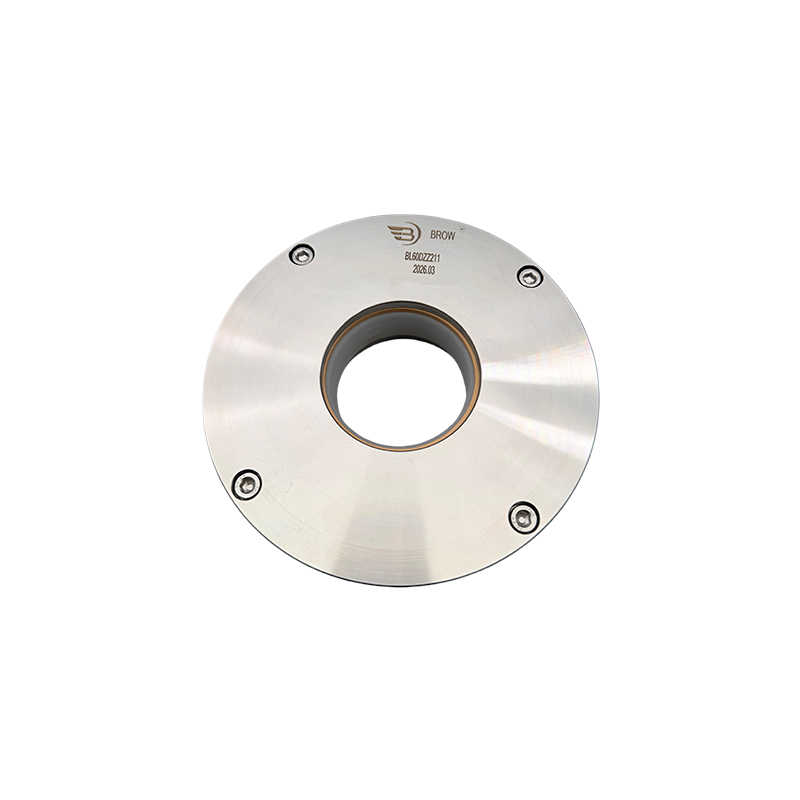

BL-D rotary shaft seals for Screw Conveyor
BL-D complies with Meiwei FDA certification. The static ring and movable ring of the shaft seal are made of high-performance modified PTFE material, PEEK1000 and special metal processes.
Product Description
rotary shaft seals for Screw Conveyor
BL-D complies with Meiwei FDA certification. The static ring and movable ring of the shaft seal are made of high-performance modified PTFE material, PEEK1000 and special metal processes. The shaft seal installation base, 0-ring, static ring, movable ring, and end cover can be made into a partial structure, which is easy to maintain and replace. It can also be used for on-site demolishing-free upgrades and replacement of equipment filler seals, skeleton oil seals and mechanical seals.

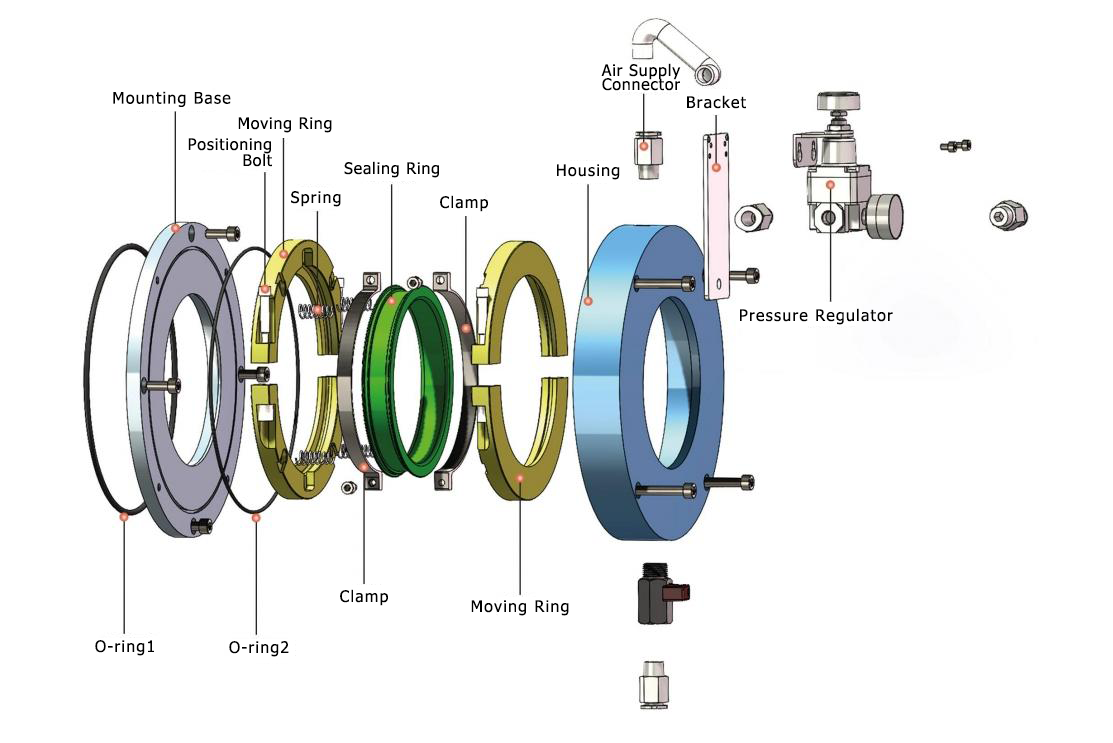

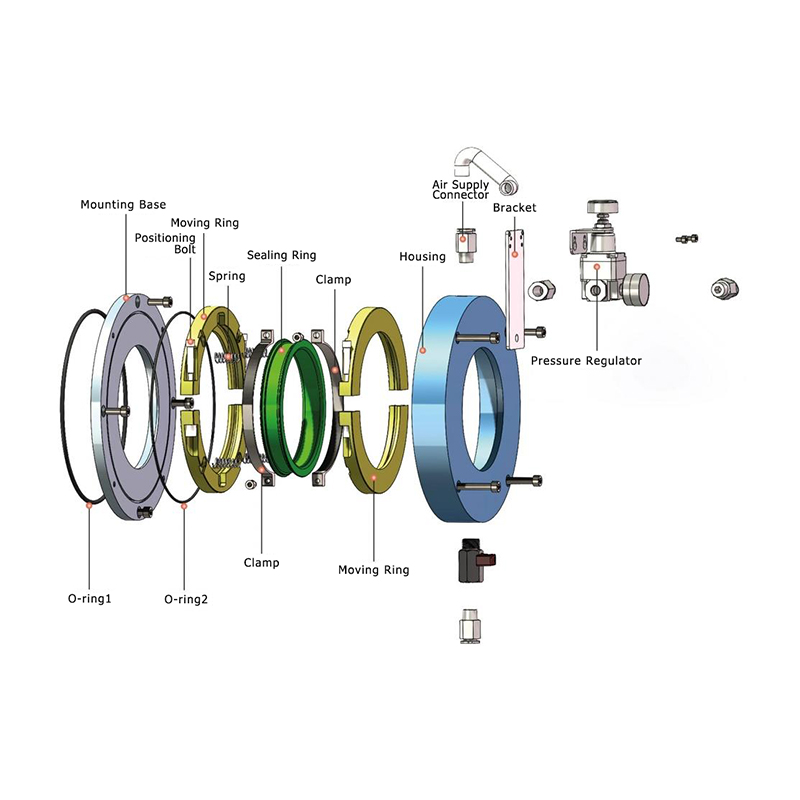

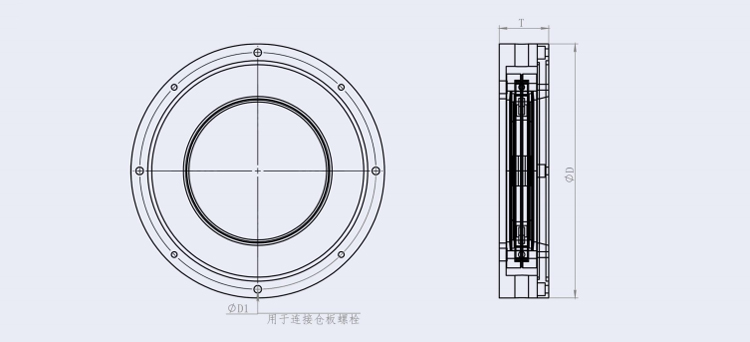

1.EXPLODED VIEW

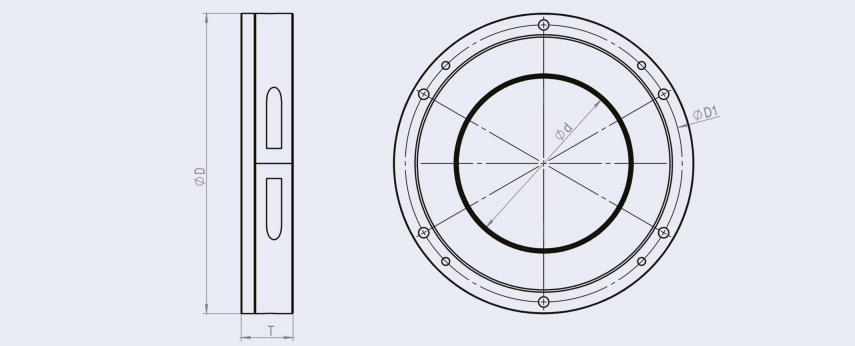

2.BL-D SIZE
| Model |
Shaft Diameter d |
Outer Diameter D |
Thickness T |
Air Consumption L/min |
MountingThread Holes D1 |
| BL50-D | 50 | 150 | 43 | 10 | 4*M6-Φ135 |
| BL60-D | 60 | 160 | 43 | 10 | 4*M6-Φ145 |
| BL70-D | 70 | 170 | 43 | 10 | 4*M6-Φ155 |
| BL80-D | 80 | 180 | 43 | 10 | 4*M6-Φ165 |
| BL90-D | 90 | 190 | 43 | 10 | 4*M6-Φ175 |
| BL100-D | 100 | 200 | 43 | 10 | 4*M6-Φ185 |
| BL110-D | 110 | 210 | 43 | 10 | 4*M6-Φ195 |
| BL120-D | 120 | 220 | 43 | 10 | 4*M6-Φ205 |
| BL130-D | 130 | 230 | 43 | 10 | 4*M6-Φ215 |
| BL140-D | 140 | 240 | 43 | 10 | 4*M6-Φ225 |
| BL150-D | 150 | 260 | 45 | 10 | 6*M8-Φ240 |
| BL160-D | 160 | 270 | 45 | 10 | 6*M8-Φ250 |
| BL170-D | 170 | 280 | 45 | 10 | 6*M8-Φ260 |
| BL180-D | 180 | 290 | 45 | 10 | 6*M8-Φ270 |
| BL190-D | 190 | 300 | 45 | 20 | 6*M8-Φ280 |
| BL200-D | 200 | 310 | 52 | 20 | 6*M8-Φ290 |
| BL210-D | 210 | 320 | 52 | 20 | 6*M8-Φ300 |
| BL220-D | 220 | 330 | 52 | 20 | 6*M8-Φ310 |
| BL230-D | 230 | 340 | 52 | 20 | 6*M8-Φ320 |
| BL240-D | 240 | 350 | 52 | 20 | 6*M8-Φ330 |
| BL250-D | 250 | 360 | 52 | 20 | 6*M10-Φ340 |
| BL260-D | 260 | 370 | 52 | 20 | 6*M10-Φ350 |

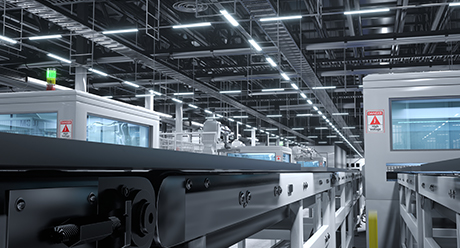

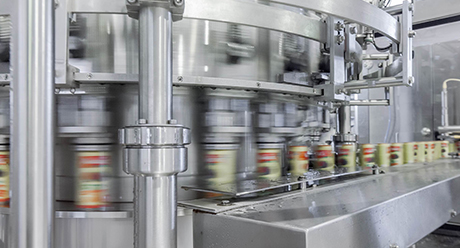

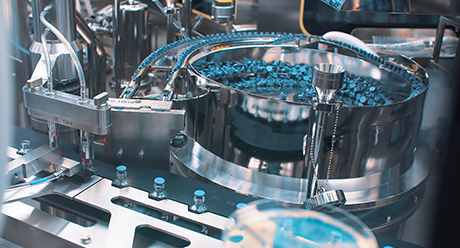

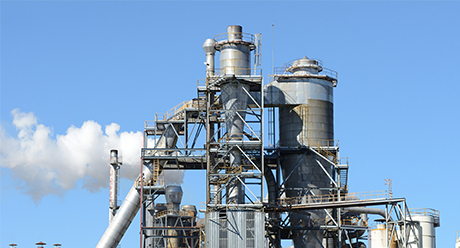

3.Appllcation Scenarios
 |
 |
|
 |
 |
4.FAQ
How long does it take to install the sealing product?
30-60 minutes
Can you send your staff to install the equipment for us?
Yes, it will cost you money
How long does it take you to provide the designing options for us?
24 hours after confirming the relevant data
Can you design the equipment according to our size?
We provide customized services
Do you have detailed and professional installation manual?
Provide SOP and installation video
Are you a trading company or a manufacturer?
Manufacturer
