High Performance PEEK Rotary Shaft Seals
Rotary shaft seals play a critical role in ensuring the reliability and efficiency of rotating equipment operating under extreme conditions. Polyetheretherketone (PEEK), known for its excellent thermal stability, chemical resistance, and mechanical strength, has emerged as a high-performance material for advanced sealing applications.
Product Description
Rotary Shaft Seals
BL-D complies with Meiwei FDA certification. The static ring and movable ring of the shaft seal are made of high-performance modified PTFE material, PEEK1000 and special metal processes. The shaft seal installation base, 0-ring, static ring, movable ring, and end cover can be made into a partial structure, which is easy to maintain and replace. It can also be used for on-site demolishing-free upgrades and replacement of equipment filler seals, skeleton oil seals and mechanical seals.
Rotary shaft seals play a critical role in ensuring the reliability and efficiency of rotating equipment operating under extreme conditions. Polyetheretherketone (PEEK), known for its excellent thermal stability, chemical resistance, and mechanical strength, has emerged as a high-performance material for advanced sealing applications. This study investigates the design and performance of rotary shaft seals made from high-grade PEEK, focusing on their behavior in high-speed, high-temperature, and chemically aggressive environments. Test results show that PEEK seals exhibit superior wear resistance, low friction characteristics, and minimal deformation under load, outperforming conventional polymer-based seals. These properties make PEEK rotary shaft seals an ideal solution for demanding applications in aerospace, automotive, and industrial machinery sectors.

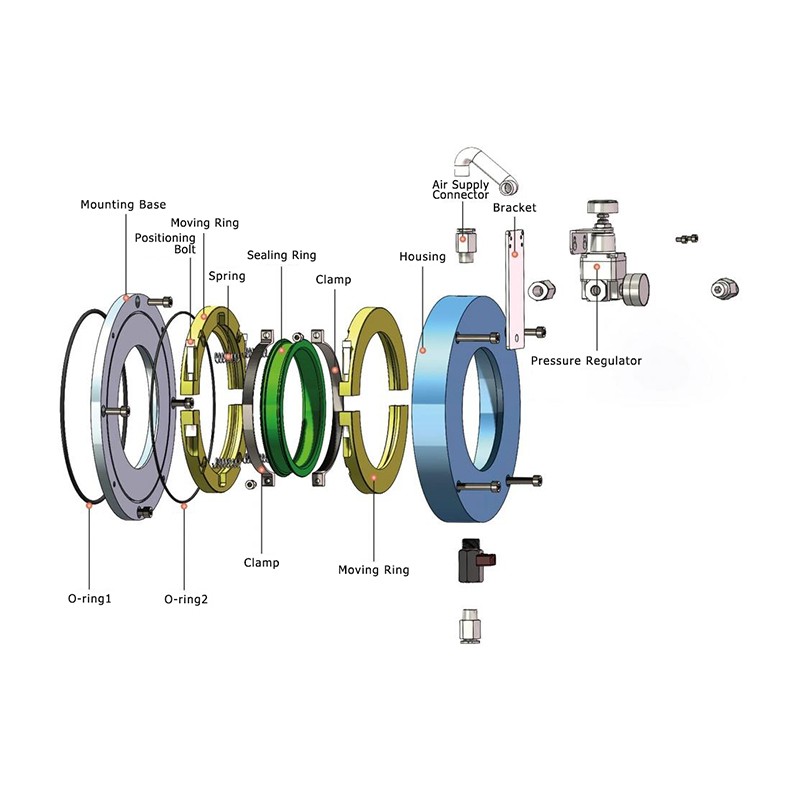

1.EXPLODED VIEW
2.BL-D SIZE
| Inner Diameter | Outer Diameter | Thickness T | Air Consumption L/min | MountingThread Holes D1 |
| 50 | 150 | 45 | 10 | 4*M6-Φ135 |
| 60 | 160 | 45 | 10 | 4*M6-Φ145 |
| 70 | 170 | 45 | 10 | 4*M6-Φ155 |
| 80 | 180 | 45 | 10 | 4*M6-Φ155 |
| 90 | 190 | 45 | 10 | 4*M6-Φ175 |
| 100 | 200 | 45 | 10 | 4*M6-Φ185 |
| 110 | 210 | 45 | 10 | 4*M6-Φ195 |
| 120 | 220 | 45 | 10 | 4*M6-Φ205 |
| 130 | 230 | 45 | 10 | 4*M6-Φ215 |
| 140 | 240 | 45 | 10 | 4*M6-Φ225 |
| 150 | 260 | 45 | 10 | 4*M6-Φ240 |
| 160 | 270 | 45 | 10 | 4*M6-Φ250 |
| 170 | 280 | 45 | 10 | 4*M6-Φ260 |
| 180 | 290 | 45 | 10 | 4*M6-Φ270 |
| 190 | 300 | 45 | 20 | 4*M6-Φ280 |
| 200 | 310 | 45 | 20 | 4*M6-Φ290 |
| 210 | 320 | 45 | 20 | 4*M6-Φ300 |
| 220 | 330 | 45 | 20 | 4*M6-Φ310 |
| 230 | 340 | 45 | 20 | 4*M6-Φ320 |
| 240 | 350 | 45 | 20 | 4*M6-Φ330 |
| 250 | 360 | 45 | 20 | 4*M6-Φ340 |
| 260 | 370 | 45 | 20 | 4*M6-Φ350 |
3.Appllcation Scenarios
 |
 |
|
 |
 |
4.FAQ
How long does it take to install the sealing product?
30-60 minutes
Can you send your staff to install the equipment for us?
Yes, it will cost you money
How long does it take you to provide the designing options for us?
24 hours after confirming the relevant data
Can you design the equipment according to our size?
We provide customized services
Do you have detailed and professional installation manual?
Provide SOP and installation video
Are you a trading company or a manufacturer?
Manufacturer
What are the advantages of our company?
1. Focus on the powder industry: Deeply cultivate the powder industry field, deeply understand customer pain points, and provide professional sealing solutions.
2. Leading innovative technology: Continue to develop high-performance materials and structural designs to solve industry problems such as powder leakage and wear.
3. Excellent product performance: High-quality materials and advanced processes are used to ensure stable operation of seals under harsh working conditions and long service life.
4. Intimate and thoughtful service: from pre-sales consultation to after-sales maintenance, it provides comprehensive technical support to solve customers 'worries.
The company's brand slogan: Believe, making industrial equipment operate more efficiently!
