Rotary Air Valve Rotary Shaft Seals
Rotary shaft seals in rotary air valves are essential for ensuring efficient and leak-free operation in pneumatic conveying and airlock systems. These seals are installed around the rotating shaft of the valve to prevent air or material leakage between the pressurized and non-pressurized areas.
Product Description
BL-DJL complies with Meiwei FDA certification. The static ring and movable ring of the shaft seal are made of high-performance modified PTFE material, PEEK1000 and special metal processes. The shaft seal installation base, 0-ring, static ring, movable ring, and end cover can be made into partial structures, which are easy to maintain and replace. It is also used for on-site demolishing-free upgrades and replacement of equipment filler seals, skeleton oil seals and mechanical seals. The shell is a double-end heat runner.
Rotary shaft seals in rotary air valves are essential for ensuring efficient and leak-free operation in pneumatic conveying and airlock systems. These seals are installed around the rotating shaft of the valve to prevent air or material leakage between the pressurized and non-pressurized areas. By maintaining a proper seal, they help preserve system pressure, reduce energy loss, and prevent contamination of conveyed materials.
Operating under constant motion and often in dusty, abrasive, or high-temperature environments, these seals must be highly resistant to wear, heat, and chemical exposure. Materials such as PTFE, Viton, and high-grade elastomers or metal-reinforced composites are commonly used to meet these demands. Effective shaft sealing is critical to the performance, reliability, and longevity of rotary air valves, helping minimize downtime and maintenance while ensuring consistent system efficiency.

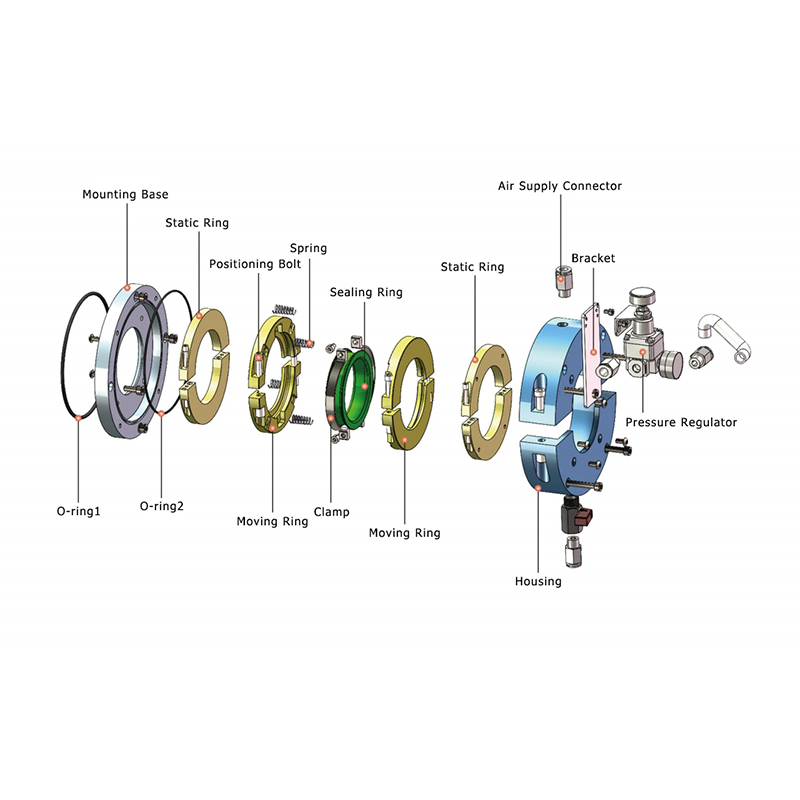

1.EXPLODED VIEW
2.BL-DJL SIZE
| Inner Diameter | Outer Diameter | Thickness T | Air Consumption L/min | MountingThread Holes D1 |
| 50 | 150 | 45 | 10 | 4*M6-Φ135 |
| 60 | 160 | 45 | 10 | 4*M6-Φ145 |
| 70 | 170 | 45 | 10 | 4*M6-Φ155 |
| 80 | 180 | 45 | 10 | 4*M6-Φ155 |
| 90 | 190 | 45 | 10 | 4*M6-Φ175 |
| 100 | 200 | 45 | 10 | 4*M6-Φ185 |
| 110 | 210 | 45 | 10 | 4*M6-Φ195 |
| 120 | 220 | 45 | 10 | 4*M6-Φ205 |
| 130 | 230 | 45 | 10 | 4*M6-Φ215 |
| 140 | 240 | 45 | 10 | 4*M6-Φ225 |
| 150 | 260 | 45 | 10 | 4*M6-Φ240 |
| 160 | 270 | 45 | 10 | 4*M6-Φ250 |
| 170 | 280 | 45 | 10 | 4*M6-Φ260 |
| 180 | 290 | 45 | 10 | 4*M6-Φ270 |
| 190 | 300 | 45 | 20 | 4*M6-Φ280 |
| 200 | 310 | 45 | 20 | 4*M6-Φ290 |
| 210 | 320 | 45 | 20 | 4*M6-Φ300 |
| 220 | 330 | 45 | 20 | 4*M6-Φ310 |
| 230 | 340 | 45 | 20 | 4*M6-Φ320 |
| 240 | 350 | 45 | 20 | 4*M6-Φ330 |
| 250 | 360 | 45 | 20 | 4*M6-Φ340 |
| 260 | 370 | 45 | 20 | 4*M6-Φ350 |
3.Appllcation Scenarios
 |
 |
|
 |
 |
4.FAQ
How long does it take to install the sealing product?
30-60 minutes
Can you send your staff to install the equipment for us?
Yes, it will cost you money
How long does it take you to provide the designing options for us?
24 hours after confirming the relevant data
Can you design the equipment according to our size?
We provide customized services
Do you have detailed and professional installation manual?
Provide SOP and installation video
Are you a trading company or a manufacturer?
Manufacturer
