Rotary Shaft Seals Spiral Mixer
The Rotary Shaft Seals Spiral Mixer is a high-efficiency mixing system designed for the thorough blending of viscous pastes, powders, and semi-solid materials.
Product Description
The Rotary Shaft Seals Spiral Mixer is a high-efficiency mixing system designed for the thorough blending of viscous pastes, powders, and semi-solid materials. Equipped with durable rotary shaft seals, the mixer ensures secure containment at shaft entry points, effectively preventing leakage, contamination, and product buildup during continuous or batch processing. The spiral mixing blades promote uniform material movement, enhancing mixing consistency and reducing processing time. Ideal for industries such as food, pharmaceuticals, chemicals, and construction materials, this mixer delivers reliable sealing, easy maintenance, and superior performance under demanding production conditions.
BL-DJ complies with Meiwei FDA certification. The static ring and movable ring of the shaft seal are made of high-performance modified PTFE material, PEEK1000 and special metal processes. The shaft seal installation base, 0-ring, static ring, movable ring, and end cover can be made into partial structures, which are easy to maintain and replace. It is also used for on-site demolishing-free upgrades and replacement of equipment filler seals, skeleton oil seals and mechanical seals. The shell is a double-end heat runner.
Rotary shaft seals are essential components in mechanical systems. Their primary role is to seal the dynamic interface between rotating shafts and stationary components, preventing fluid leakage and safeguarding machinery from contaminants. These seals are widely used across industries such as automotive, industrial equipment, aerospace, and heavy machinery, ensuringthe smooth operation and extended life of machinery.
A rotary shaft seal is a mechanical seal designed to prevent the leakage of fluids from rotating machinery. lt works by sealing the interface between a rotating shaft and a stationary housing or component. The key function is to prevent the loss of lubricants and the ingress of contaminants, thereby maintaining the integrity and efficiency of the system.

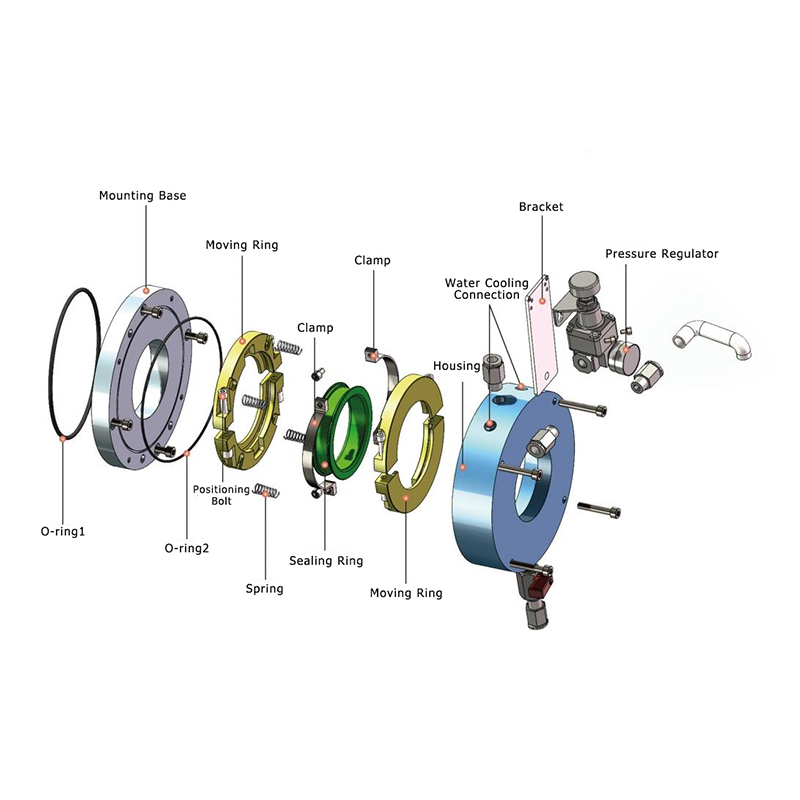

1.EXPLODED VIEW
2.BL-DJ SIZE
| Inner Diameter | Outer Diameter | Thickness T | Air Consumption L/min | MountingThread Holes D1 |
| 50 | 150 | 45 | 10 | 4*M6-Φ135 |
| 60 | 160 | 45 | 10 | 4*M6-Φ145 |
| 70 | 170 | 45 | 10 | 4*M6-Φ155 |
| 80 | 180 | 45 | 10 | 4*M6-Φ155 |
| 90 | 190 | 45 | 10 | 4*M6-Φ175 |
| 100 | 200 | 45 | 10 | 4*M6-Φ185 |
| 110 | 210 | 45 | 10 | 4*M6-Φ195 |
| 120 | 220 | 45 | 10 | 4*M6-Φ205 |
| 130 | 230 | 45 | 10 | 4*M6-Φ215 |
| 140 | 240 | 45 | 10 | 4*M6-Φ225 |
| 150 | 260 | 45 | 10 | 4*M6-Φ240 |
| 160 | 270 | 45 | 10 | 4*M6-Φ250 |
| 170 | 280 | 45 | 10 | 4*M6-Φ260 |
| 180 | 290 | 45 | 10 | 4*M6-Φ270 |
| 190 | 300 | 45 | 20 | 4*M6-Φ280 |
| 200 | 310 | 45 | 20 | 4*M6-Φ290 |
| 210 | 320 | 45 | 20 | 4*M6-Φ300 |
| 220 | 330 | 45 | 20 | 4*M6-Φ310 |
| 230 | 340 | 45 | 20 | 4*M6-Φ320 |
| 240 | 350 | 45 | 20 | 4*M6-Φ330 |
| 250 | 360 | 45 | 20 | 4*M6-Φ340 |
| 260 | 370 | 45 | 20 | 4*M6-Φ350 |
3.Appllcation Scenarios
 |
 |
|
 |
 |
4.FAQ
How long does it take to install the sealing product?
30-60 minutes
Can you send your staff to install the equipment for us?
Yes, it will cost you money
How long does it take you to provide the designing options for us?
24 hours after confirming the relevant data
Can you design the equipment according to our size?
We provide customized services
Do you have detailed and professional installation manual?
Provide SOP and installation video
Can I only buy some spare parts from you?
Yes
Will you attend the fair to show your products?
Attend the exhibition
Can you send your equipment to my warehouse in guangzhou?
Yes
