Screw Conveyor Rotary Shaft Seals
Rotary shaft seals in screw conveyors are essential for preventing material leakage and protecting internal components from external contaminants such as dust, moisture, and chemicals.
Product Description
BL-DJ complies with Meiwei FDA certification. The static ring and movable ring of the shaft seal are made of high-performance modified PTFE material, PEEK1000 and special metal processes. The shaft seal installation base, 0-ring, static ring, movable ring, and end cover can be made into partial structures, which are easy to maintain and replace. It is also used for on-site demolishing-free upgrades and replacement of equipment filler seals, skeleton oil seals and mechanical seals. The shell is a double-end heat runner.
Rotary shaft seals in screw conveyors are essential for preventing material leakage and protecting internal components from external contaminants such as dust, moisture, and chemicals. These seals are installed at the points where the rotating screw shaft exits the conveyor housing, ensuring a tight seal that maintains process integrity and supports efficient, continuous operation.
Screw conveyors often handle abrasive, corrosive, or high-temperature materials, requiring seals made from durable and chemically resistant materials like PTFE, Viton, nitrile rubber, or stainless steel. These seals must also withstand constant motion and pressure differentials without degrading performance.
Effective rotary shaft sealing helps minimize downtime, reduce maintenance frequency, and extend equipment life. Choosing the right seal design and material is crucial for ensuring reliable operation in demanding bulk handling and material processing environments.

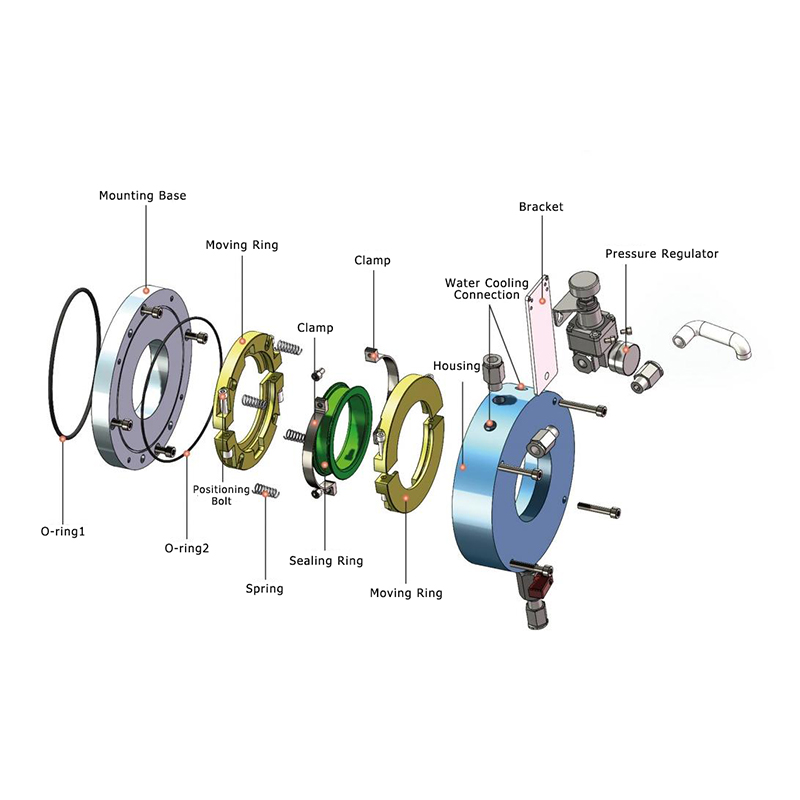

1.EXPLODED VIEW
2.BL-D SIZE
| Inner Diameter | Outer Diameter | Thickness T | Air Consumption L/min | MountingThread Holes D1 |
| 50 | 150 | 45 | 10 | 4*M6-Φ135 |
| 60 | 160 | 45 | 10 | 4*M6-Φ145 |
| 70 | 170 | 45 | 10 | 4*M6-Φ155 |
| 80 | 180 | 45 | 10 | 4*M6-Φ155 |
| 90 | 190 | 45 | 10 | 4*M6-Φ175 |
| 100 | 200 | 45 | 10 | 4*M6-Φ185 |
| 110 | 210 | 45 | 10 | 4*M6-Φ195 |
| 120 | 220 | 45 | 10 | 4*M6-Φ205 |
| 130 | 230 | 45 | 10 | 4*M6-Φ215 |
| 140 | 240 | 45 | 10 | 4*M6-Φ225 |
| 150 | 260 | 45 | 10 | 4*M6-Φ240 |
| 160 | 270 | 45 | 10 | 4*M6-Φ250 |
| 170 | 280 | 45 | 10 | 4*M6-Φ260 |
| 180 | 290 | 45 | 10 | 4*M6-Φ270 |
| 190 | 300 | 45 | 20 | 4*M6-Φ280 |
| 200 | 310 | 45 | 20 | 4*M6-Φ290 |
| 210 | 320 | 45 | 20 | 4*M6-Φ300 |
| 220 | 330 | 45 | 20 | 4*M6-Φ310 |
| 230 | 340 | 45 | 20 | 4*M6-Φ320 |
| 240 | 350 | 45 | 20 | 4*M6-Φ330 |
| 250 | 360 | 45 | 20 | 4*M6-Φ340 |
| 260 | 370 | 45 | 20 | 4*M6-Φ350 |
3.Appllcation Scenarios
 |
 |
|
 |
 |
4.FAQ
How long does it take to install the sealing product?
30-60 minutes
Can you send your staff to install the equipment for us?
Yes, it will cost you money
How long does it take you to provide the designing options for us?
24 hours after confirming the relevant data
Can you design the equipment according to our size?
We provide customized services
Do you have detailed and professional installation manual?
Provide SOP and installation video
Are you a trading company or a manufacturer?
Manufacturer
Can you send your staff to install the equipment for us?
Yes, but it costs money
Can I only buy some spare parts from you?
Yes
What are the advantages of our company?
1. Focus on the powder industry: Deeply cultivate the powder industry field, deeply understand customer pain points, and provide professional sealing solutions.
2. Leading innovative technology: Continue to develop high-performance materials and structural designs to solve industry problems such as powder leakage and wear.
3. Excellent product performance: High-quality materials and advanced processes are used to ensure stable operation of seals under harsh working conditions and long service life.
4. Intimate and thoughtful service: from pre-sales consultation to after-sales maintenance, it provides comprehensive technical support to solve customers 'worries.
