Pneumatic Knife Gate Valve

Integral structure, ultra-thin design, full-flow flow, not easy to leak, easy to disassemble and assemble

Movable sealing structure, good sealing, strong wear resistance, automatic compensation, super long life

Fixed guide claw design replaces the groove structure, is not easy to accumulate debris, and prevents locking

Double bearing design, small torque, frequent opening and closing, no vibration and no noise

Knife-shaped cutting edge, strong cutting force, self-cleaning function, suitable for fiber particle fluids

SEND YOUR INQUIRY

Product Description

Design Features

Integral structure, ultra-thin design, full-flow flow, not easy to leak, easy to disassemble and assemble

Movable sealing structure, good sealing, strong wear resistance, automatic compensation, super long life

Fixed guide claw design replaces the groove structure, is not easy to accumulate debris, and prevents locking

Double bearing design, small torque, frequent opening and closing, no vibration and no noise

Knife-shaped cutting edge, strong cutting force, self-cleaning function, suitable for fiber particle fluids

Technical Parameters

Nominal diameter: DN50~600mm

Valve body material: carbon steel, stainless steel 304, stainless steel 316

Medium temperature: W2:-20~80℃ W3:-20~250℃ W4:-29~425℃

Mode of action: double acting, single acting normally closed, single acting normally open

Nominal pressure: 1.0~1.6Mpa (If you need other pressure standards, please indicate when ordering)

Sealing material: PTFE, metal hard seal, carbide

Connection method: clamp

Control mode: standard switch type, overall adjustment type, overall switch type, bus type

Main Parts Material List

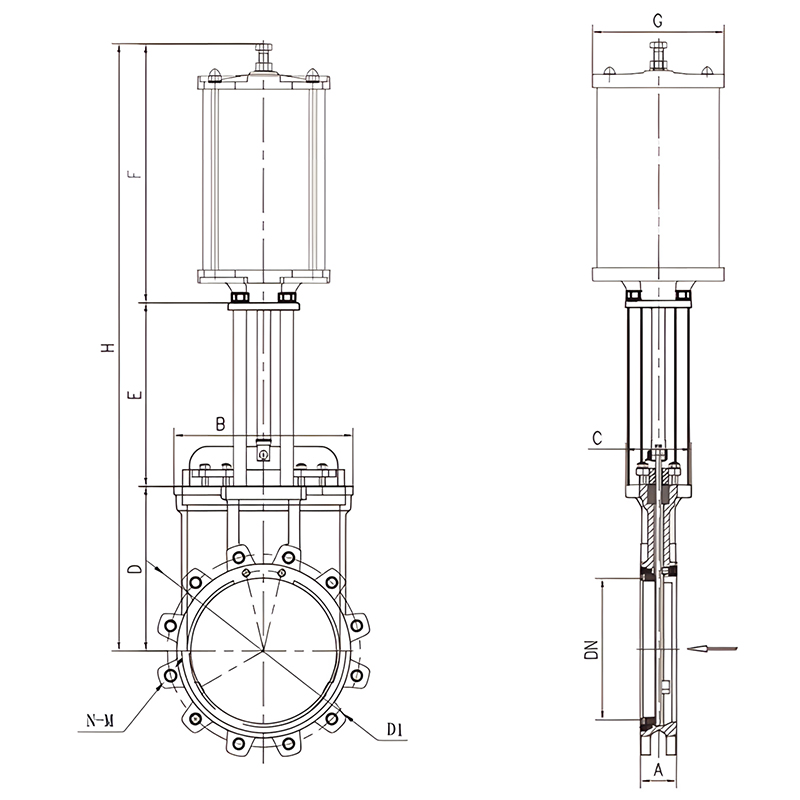

Dimensions Table
