Rotary Shaft Seals Blender
Rotary shaft seals in blenders are crucial components that ensure the integrity and efficiency of mixing operations by preventing the leakage of materials and contaminants during the blending process.
Product Description
Blender Rotary Shaft Seals
BL-DJ complies with Meiwei FDA certification. The static ring and movable ring of the shaft seal are made of high-performance modified PTFE material, PEEK1000 and special metal processes. The shaft seal installation base, 0-ring, static ring, movable ring, and end cover can be made into partial structures, which are easy to maintain and replace. It is also used for on-site demolishing-free upgrades and replacement of equipment filler seals, skeleton oil seals and mechanical seals. The shell is a double-end heat runner.
Rotary shaft seals are essential components in mechanical systems. Their primary role is to seal the dynamic interface between rotating shafts and stationary components, preventing fluid leakage and safeguarding machinery from contaminants. These seals are widely used across industries such as automotive, industrial equipment, aerospace, and heavy machinery, ensuringthe smooth operation and extended life of machinery.
A rotary shaft seal is a mechanical seal designed to prevent the leakage of fluids from rotating machinery. lt works by sealing the interface between a rotating shaft and a stationary housing or component. The key function is to prevent the loss of lubricants and the ingress of contaminants, thereby maintaining the integrity and efficiency of the system.
Rotary shaft seals in blenders are crucial components that ensure the integrity and efficiency of mixing operations by preventing the leakage of materials and contaminants during the blending process. These seals are commonly used in industries such as food processing, pharmaceuticals, chemicals, and cosmetics, where precise mixing and strict hygienic conditions are required. The rotary shaft seals must withstand continuous motion, varying pressures, and the effects of abrasive or corrosive ingredients, all while maintaining optimal sealing performance.
Materials such as elastomers, PTFE, and FDA-approved composites are typically selected for their durability, chemical resistance, and ability to comply with sanitary standards. The design of these seals is critical, as improper sealing can lead to material loss, contamination, or even equipment failure. This paper examines the functional role, design challenges, and material considerations for rotary shaft seals used in blenders, focusing on enhancing operational reliability, minimizing downtime, and improving process efficiency. By optimizing the sealing system, manufacturers can achieve better product consistency, lower maintenance costs, and longer equipment life in blending applications.

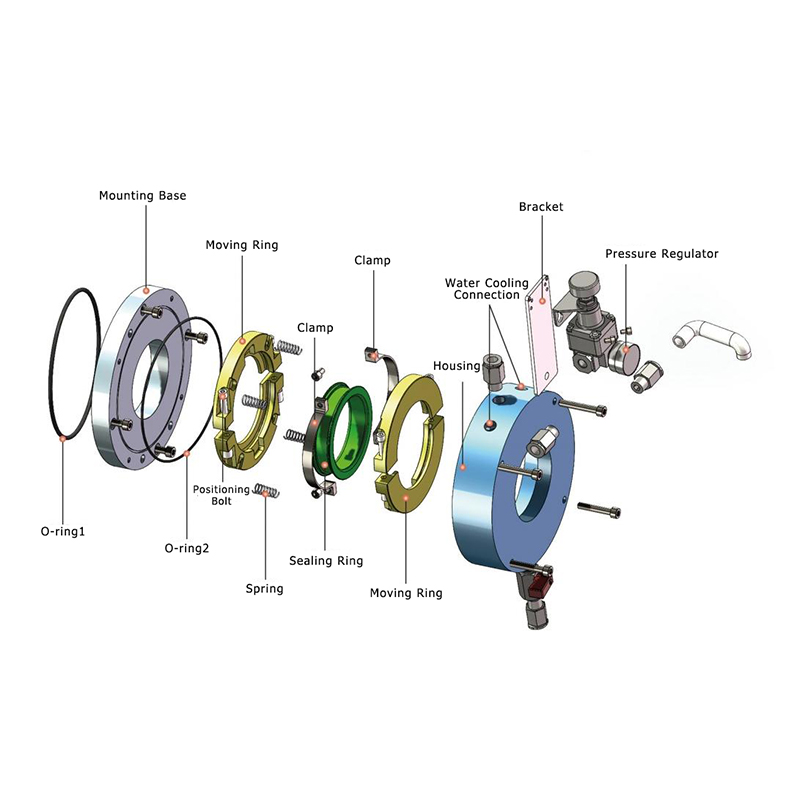

1.EXPLODED VIEW
2.BL-DJ SIZE
| Inner Diameter | Outer Diameter | Thickness T | Air Consumption L/min | MountingThread Holes D1 |
| 50 | 150 | 45 | 10 | 4*M6-Φ135 |
| 60 | 160 | 45 | 10 | 4*M6-Φ145 |
| 70 | 170 | 45 | 10 | 4*M6-Φ155 |
| 80 | 180 | 45 | 10 | 4*M6-Φ155 |
| 90 | 190 | 45 | 10 | 4*M6-Φ175 |
| 100 | 200 | 45 | 10 | 4*M6-Φ185 |
| 110 | 210 | 45 | 10 | 4*M6-Φ195 |
| 120 | 220 | 45 | 10 | 4*M6-Φ205 |
| 130 | 230 | 45 | 10 | 4*M6-Φ215 |
| 140 | 240 | 45 | 10 | 4*M6-Φ225 |
| 150 | 260 | 45 | 10 | 4*M6-Φ240 |
| 160 | 270 | 45 | 10 | 4*M6-Φ250 |
| 170 | 280 | 45 | 10 | 4*M6-Φ260 |
| 180 | 290 | 45 | 10 | 4*M6-Φ270 |
| 190 | 300 | 45 | 20 | 4*M6-Φ280 |
| 200 | 310 | 45 | 20 | 4*M6-Φ290 |
| 210 | 320 | 45 | 20 | 4*M6-Φ300 |
| 220 | 330 | 45 | 20 | 4*M6-Φ310 |
| 230 | 340 | 45 | 20 | 4*M6-Φ320 |
| 240 | 350 | 45 | 20 | 4*M6-Φ330 |
| 250 | 360 | 45 | 20 | 4*M6-Φ340 |
| 260 | 370 | 45 | 20 | 4*M6-Φ350 |
3.Appllcation Scenarios
 |
 |
|
 |
 |
4.FAQ
How long does it take to install the sealing product?
30-60 minutes
Can you send your staff to install the equipment for us?
Yes, it will cost you money
How long does it take you to provide the designing options for us?
24 hours after confirming the relevant data
Can you design the equipment according to our size?
We provide customized services
Do you have detailed and professional installation manual?
Provide SOP and installation video
Are you a trading company or a manufacturer?
Manufacturer
Company values:
1. Innovation-driven, technology-empowered: Continue to invest in research and development, use cutting-edge technology to solve industry problems, and provide customers with more efficient and durable sealing products.
2. Customer-oriented, precise service: Deeply understand customer needs and provide customized solutions to help customers improve production efficiency and reduce operating costs.
3. Keep improving and quality first: polish every product with the spirit of craftsmanship to ensure stable and reliable performance and win the trust of customers.
4. Green and environmentally friendly, responsible: Committed to developing energy-saving and environmentally friendly sealing technology to help customers achieve sustainable development goals.
Jiangsu Believe Automation Technology Co.,Ltd. is committed to providing customers with more convenient, efficient and more feasible sealing solutions to help customers succeed in the powder industry!
