Rotary Shaft Seals Coulter Mixer
Rotary shaft seals used in Coulter mixers are vital for maintaining a clean, efficient, and leak-free mixing process. These seals are positioned where the rotating shaft enters the mixing chamber, preventing the escape of processed materials and blocking the entry of contaminants such as dust, moisture, or cleaning agents.
Product Description
BL-DJL complies with Meiwei FDA certification. The static ring and movable ring of the shaft seal are made of high-performance modified PTFE material, PEEK1000 and special metal processes. The shaft seal installation base, 0-ring, static ring, movable ring, and end cover can be made into partial structures, which are easy to maintain and replace. It is also used for on-site demolishing-free upgrades and replacement of equipment filler seals, skeleton oil seals and mechanical seals. The shell is a double-end heat runner.
Rotary shaft seals used in Coulter mixers are vital for maintaining a clean, efficient, and leak-free mixing process. These seals are positioned where the rotating shaft enters the mixing chamber, preventing the escape of processed materials and blocking the entry of contaminants such as dust, moisture, or cleaning agents.
Coulter mixers often handle abrasive, viscous, or chemically aggressive materials under high shear and pressure. Therefore, the rotary shaft seals must be made from durable, wear-resistant, and chemically stable materials like PTFE, Viton, or reinforced elastomers. These seals ensure continuous operation by reducing wear on mechanical components and minimizing downtime due to leakage or contamination.
Selecting the right rotary shaft seal for a Coulter mixer is essential for ensuring long-term reliability, consistent product quality, and reduced maintenance in demanding industrial environments such as food processing, pharmaceuticals, chemicals, and plastics.

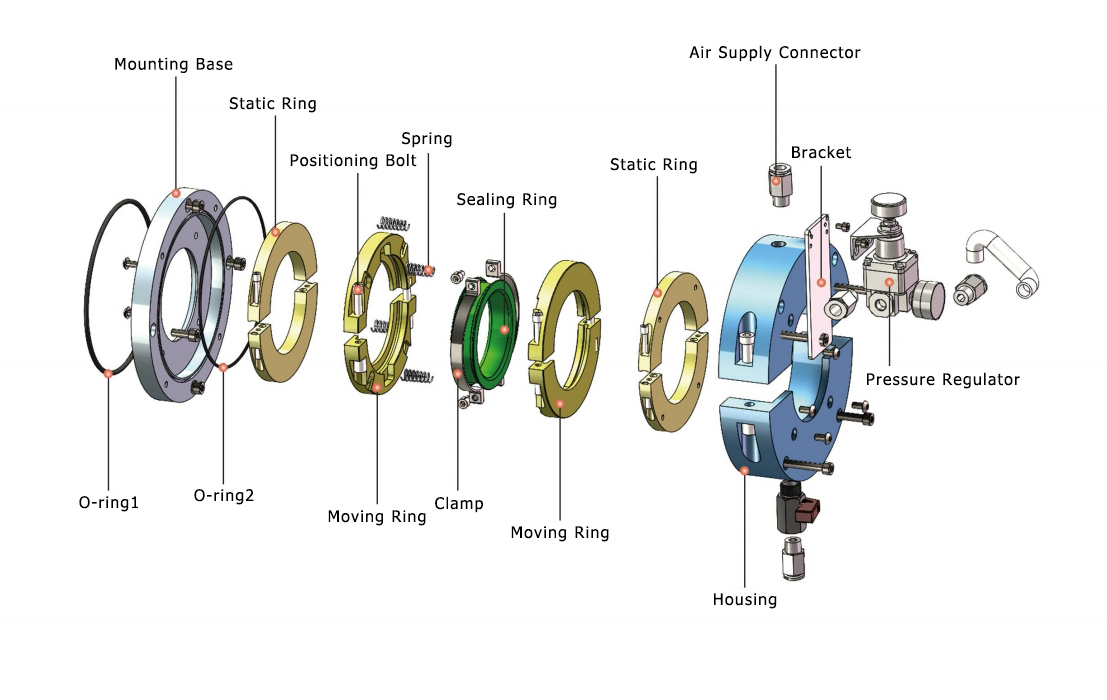

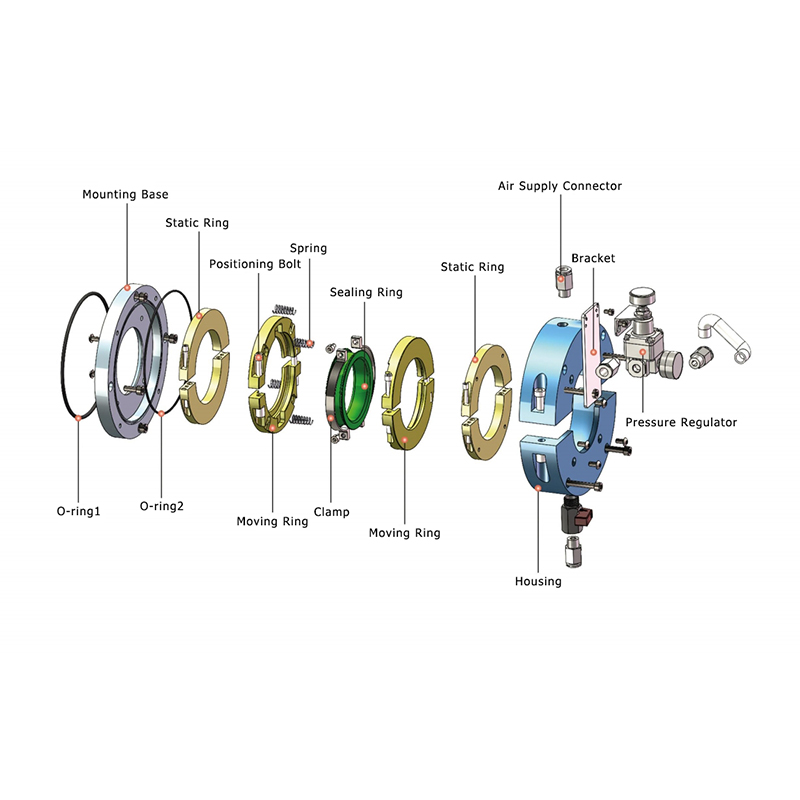

1.EXPLODED VIEW
2.BL-D SIZE
| Inner Diameter | Outer Diameter | Thickness T | Air Consumption L/min | MountingThread Holes D1 |
| 50 | 150 | 45 | 10 | 4*M6-Φ135 |
| 60 | 160 | 45 | 10 | 4*M6-Φ145 |
| 70 | 170 | 45 | 10 | 4*M6-Φ155 |
| 80 | 180 | 45 | 10 | 4*M6-Φ155 |
| 90 | 190 | 45 | 10 | 4*M6-Φ175 |
| 100 | 200 | 45 | 10 | 4*M6-Φ185 |
| 110 | 210 | 45 | 10 | 4*M6-Φ195 |
| 120 | 220 | 45 | 10 | 4*M6-Φ205 |
| 130 | 230 | 45 | 10 | 4*M6-Φ215 |
| 140 | 240 | 45 | 10 | 4*M6-Φ225 |
| 150 | 260 | 45 | 10 | 4*M6-Φ240 |
| 160 | 270 | 45 | 10 | 4*M6-Φ250 |
| 170 | 280 | 45 | 10 | 4*M6-Φ260 |
| 180 | 290 | 45 | 10 | 4*M6-Φ270 |
| 190 | 300 | 45 | 20 | 4*M6-Φ280 |
| 200 | 310 | 45 | 20 | 4*M6-Φ290 |
| 210 | 320 | 45 | 20 | 4*M6-Φ300 |
| 220 | 330 | 45 | 20 | 4*M6-Φ310 |
| 230 | 340 | 45 | 20 | 4*M6-Φ320 |
| 240 | 350 | 45 | 20 | 4*M6-Φ330 |
| 250 | 360 | 45 | 20 | 4*M6-Φ340 |
| 260 | 370 | 45 | 20 | 4*M6-Φ350 |

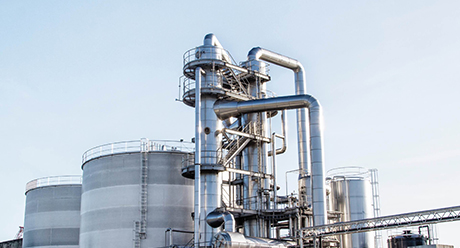

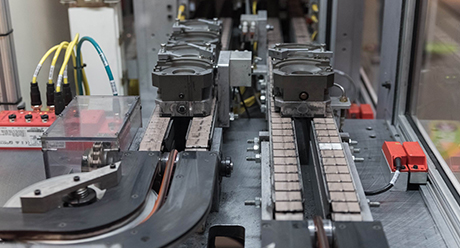

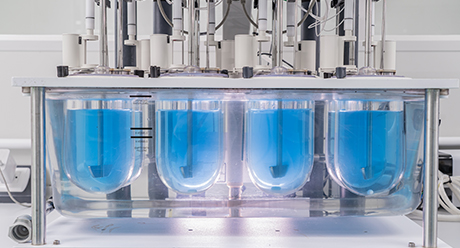

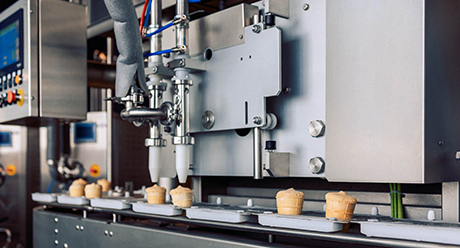

3.Appllcation Scenarios
 |
 |
|
 |
 |
4.FAQ
How long does it take to install the sealing product?
30-60 minutes
Can you send your staff to install the equipment for us?
Yes, it will cost you money
How long does it take you to provide the designing options for us?
24 hours after confirming the relevant data
Can you design the equipment according to our size?
We provide customized services
Do you have detailed and professional installation manual?
Provide SOP and installation video
Are you a trading company or a manufacturer?
Manufacturer
