Pneumatic V-Port Ball Valve

Design Features

Precision grinding process, high fit accuracy, low hysteresis, V-class leakage

Coverless design, no dead corners, less prone to material accumulation, anti-seizing, long service life

Frequent operation, quick opening and closing, simple structure, compact size

The blade edge and flow channel form a fan-shaped structure, changing the throttling surface for precise adjustment

V-shaped valve core, strong cutting force, suitable for fluids containing fibers, micro-particles, and slurries

Technical Parameters

Nominal Diameter: DN25~200mm

Body Material: Carbon steel, Stainless steel 304, Stainless steel 316

Sealing Material: PTFE, Hard alloy

Actuation Type: Double-acting, Single-acting normally closed, Single-acting normally open

Nominal Pressure: 1.0~2.5Mpa (Please specify other pressure standards when ordering)

Connection Type: Flange

Medium Temperature: W2: -20~150℃  W3: -20~250℃  W4: -29~425℃

Control Method: Standard on/off type, Integrated regulating type, Integrated on/off type, Bus type

Main Parts Material List

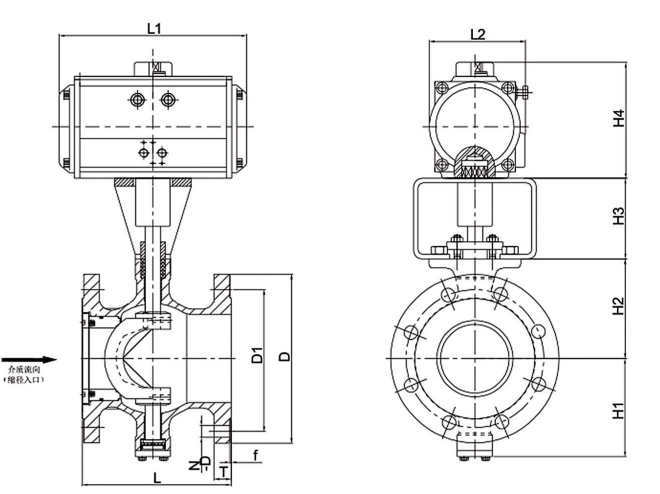

Dimension Drawing
