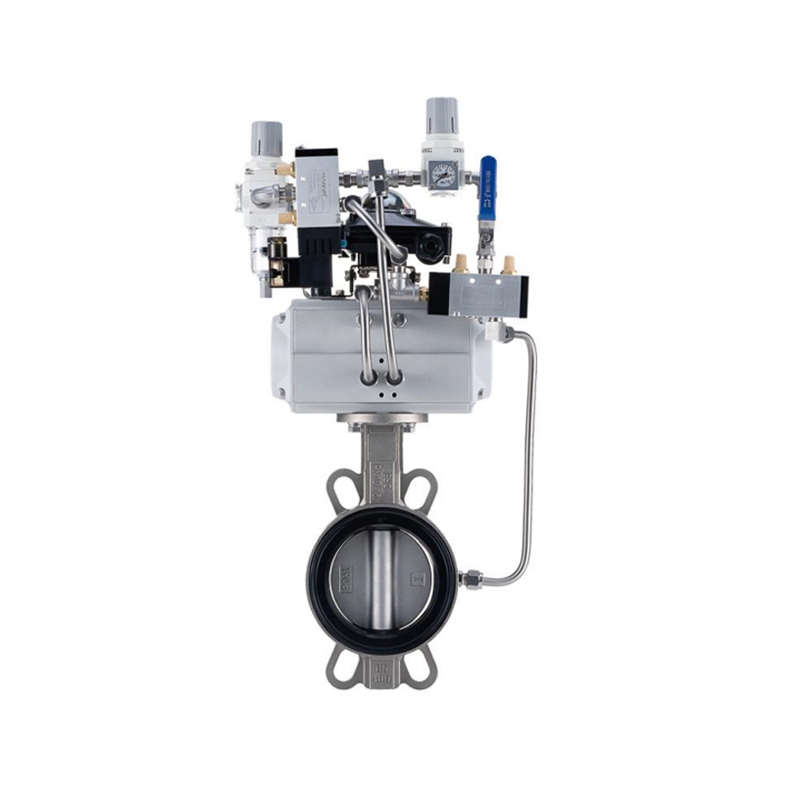

Pneumatic Centerline Inflatable Seat Butterfly Valve

Features

The unique design of the pneumatic expanding powder butterfly valve utilizes air pressure to extend the valve seat towards the valve disc, providing evenly distributed pressure for sealing at all times. Because the valve disc and seat only make momentary contact during opening and closing, the valve disc experiences only minimal impact. In contrast, conventional butterfly valves experience friction between the valve disc and seat, which reduces the valve's sealing performance and lifespan. In fact, opening and closing the pneumatic expanding powder butterfly valve requires very little torque. This allows for the use of smaller actuators, thus reducing the overall cost of the valve system.

Technical Specifications

Nominal Diameter: DN50-250MM

Operating Temperature: -20℃~+150℃

Cleaning Method: CIP/SIP

Explosion-proof Rating: ATEX I2 GDT4

Operating Pressure: -0.1Mpa~+0.5Mpa

Seal Material: Fluororubber, compliant with FDA 21 CRF 177.2660 (standard); Silicone rubber, EPDM rubber

Surface Treatment: Ra<0.4 (parts in contact with the medium), Ra<0.8 (parts not in contact with the medium)

Connection Type: Wafer, quick-connect, welding

Working Principle

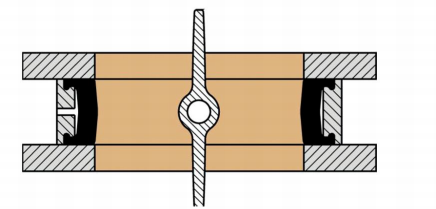

1. Closed, unsealed state

When the valve is closed, the valve seat expands towards the valve disc, providing a larger sealing surface and reducing friction, wear, and torque requirements on the valve disc.

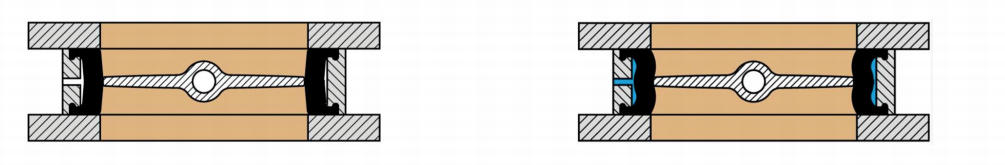

2. Closed, sealed state

When the valve is closed, the valve seat expands towards the valve disc, providing a larger sealing surface and ensuring even pressure distribution on the valve disc.

3. Open, unsealed state

Before opening the valve, the valve seat first vents and contracts, then the valve disc rotates freely to the open position.

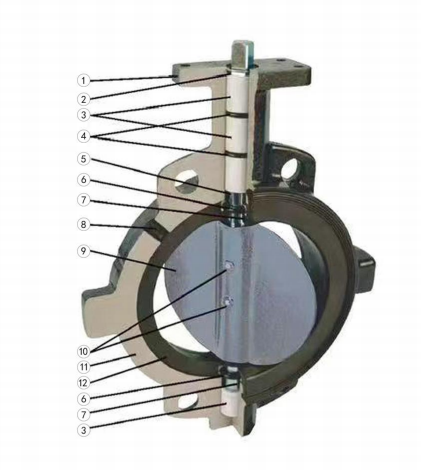

Main Parts Material List

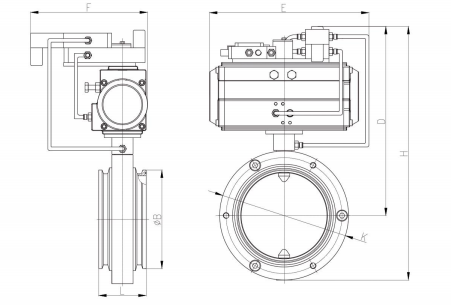

Dimensional Drawing Of Pneumatic Expansion Type Quick-Release Butterfly Valve
