Pneumatic Fully Lined Fluoropolymer Butterfly Valve

Design Features:

Fully lined interior, resistant to strong corrosion, aging, and wear.

Dovetail groove structure, uniformly perforated valve components, strong adhesion, and extra-long service life.

Molded construction, chemically stable, not prone to detachment, and excellent anti-fouling and non-stick properties.

Smooth inner wall, low resistance, high CV value, strong flow capacity, and zero leakage.

Small size, light weight, safe and stable, easy to operate, and convenient to install.

Technical Specifications

Nominal Diameter: DN40~600mm

Body Material: Ductile iron, carbon steel, stainless steel 304, stainless steel 316

Medium Temperature: W2: -20~150℃

Actuation Type: Double-acting, single-acting normally closed, single-acting normally open

Nominal pressure: 1.0~1.6 MPa (Please specify other pressure standards when ordering)

Seal material: Polytetrafluoroethylene (PTFE)

Connection type: Wafer type, Flange type

Control method: Standard on/off type, Integrated regulating type, Integrated on/off type, Bus type

Main Parts and Materials

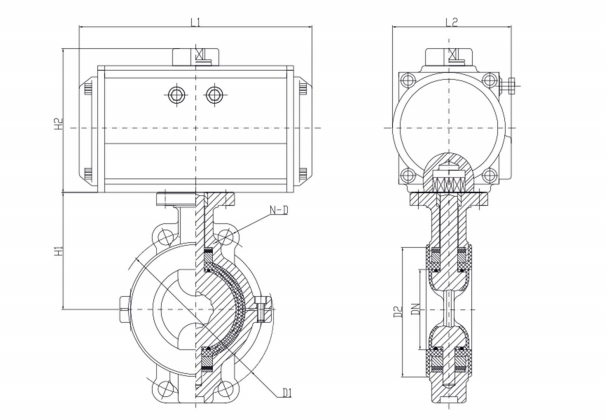

Dimensions Table
