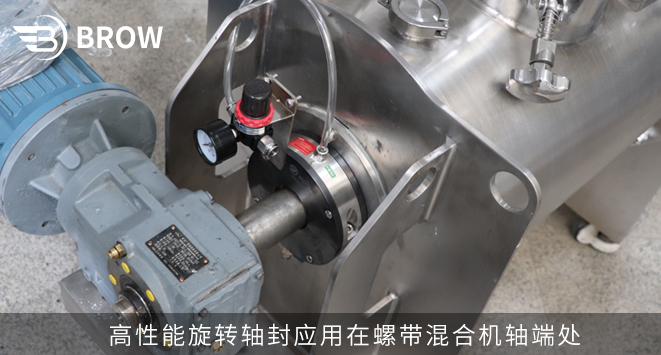

Analysis of the Application of High-performance Rotary Shaft Seals in the Shaft End Seals of Ribbon Mixers

In the upgrade plan of the shaft end seals of ribbon mixers, high-performance rotary shaft seals provide a better choice for solving the leakage problem through the innovative combination of dynamic contact soft surface seals and air pressure assisted purification. This split structure design makes up for the shortcomings of traditional sealing methods in adaptability, wear resistance and maintenance convenience.





1. Adaptability to the working conditions of ribbon mixers

There are common problems such as shaft diameter runout, material impact and installation deviation in the operation of ribbon mixers. The design characteristics of high-performance rotary shaft seals can solve these pain points in a targeted manner:

Working condition matching dimension

Speed adaptation: Whether it is low-speed (≤30rpm) powder mixing or medium-high speed (30-200rpm) slurry stirring, the synchronous rotation design of the elastomer and the shaft can maintain stable sealing and avoid the sealing pressure fluctuation of traditional packing seals under variable speed conditions.

Material compatibility: The temperature range of high-temperature resistant silicone elastomers and PTFE dynamic rings can reach -20℃~200℃, which can meet the material temperature requirements of most chemical, food, pharmaceutical, and new energy industries; the low friction coefficient of PTFE material (≤0.05) is better than the wear resistance of traditional rubber seals for particulate materials (such as mineral powder, additives).

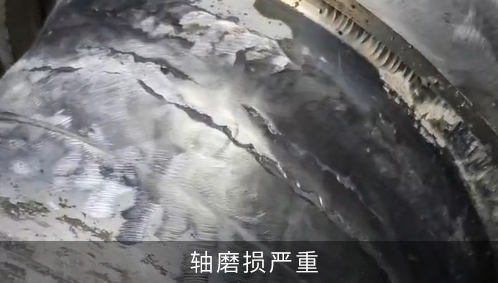

Mechanical deviation tolerance: The maximum radial runout adaptability of 3mm far exceeds the strict requirements of mechanical seals for shaft runout (mechanical seals basically do not allow obvious shaft runout, usually requiring ≤0.03mm), which is particularly suitable for old equipment with shaft wear or bearing aging after long-term operation, and can effectively reduce the sealing failure caused by insufficient mechanical precision. For equipment with a long service life and a certain degree of wear and deformation of the shaft system, this high fault tolerance can significantly reduce the sealing problems caused by the difficulty of mechanical repair.





2. Core advantages over traditional solutions

The innovative design of high-performance rotary shaft seals has significant advantages in sealing reliability, maintenance costs and equipment adaptability:

Triple guarantee of sealing efficiency

Upgrade of dynamic contact seal: The friction between traditional packing and shaft is converted into controllable friction between PTFE dynamic ring and static ring, the friction coefficient is reduced by more than 60%, and the wear is reduced to 1/5 of the traditional seal. The interference fit of the elastomer always keeps the sealing surface in contact, and the spring is embedded in the counterbore of the dynamic ring to compress it to generate initial axial force. The spring force compensates the wear in real time, maintains the micron-level gap of the sealing surface, and can achieve continuous operation for more than 8,000 hours without obvious leakage.

Active protection of air pressure purification: 0.05-0.1MPA compressed air not only forms a positive pressure barrier in the sealing area to block material intrusion, but also blows away the trace dust or slurry from the sealing surface, avoiding the accelerated wear caused by the accumulation of pollutants in traditional seals. For high-dust materials (such as flour and talcum powder), purified airflow can increase the cleanliness of the sealing surface by more than 90%.

Self-aligning fault tolerance: The floating component design can automatically compensate for shaft eccentricity, thermal expansion and contraction or installation deviation. Under the common linear growth of the axis (when the temperature rises) or slight misalignment of the ribbon mixer, the sealing surface can still be effectively fitted, solving the problem that traditional seals are prone to failure due to rigid connections.

Significant reduction in maintenance costs

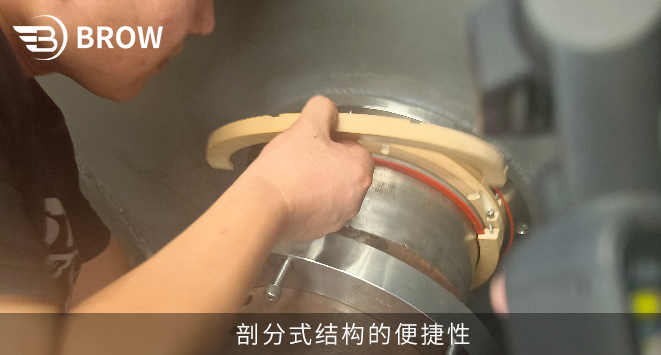

Convenience of split structure: The sealing component can be replaced without disassembling the main shaft of the equipment, reducing the downtime of traditional seal replacement from 8-12 hours to 1-2 hours, and reducing the single maintenance hours by more than 80%. For workshops with multiple equipment, it can greatly reduce the production capacity loss caused by maintenance.

Long-life design of wear parts: The wear rate of PTFE dynamic and static rings is only 1/10 of that of traditional packings. Combined with the anti-aging properties of elastomers, the average replacement cycle is extended to 8-12 months, and the annual maintenance times are reduced from 4-6 times in traditional solutions to 1-2 times, and the spare parts cost is reduced by 60%.



3. Key technical points in implementation

In order to give full play to the advantages of high-performance rotary shaft seals, the following points should be noted during installation, commissioning and operation and maintenance:

Installation and calibration specifications

Shaft surface pretreatment: The contact area between the shaft and the elastomer needs to be polished, and the surface roughness is controlled at Ra0.1-0.2μm to avoid sharp scratches that cause premature wear of the elastomer; if there are local wear and depressions on the shaft, it is necessary to repair it by welding first to ensure that the surface flatness deviation is ≤0.1mm.

Air pressure system configuration: Compressed air needs to undergo three-stage filtration (dust removal, water removal, and oil removal) to ensure the cleanliness of the air source (solid particles ≤5μm, oil content ≤0.01mg/m³) to avoid impurities blocking the air path or contaminating the sealing surface. The air pressure regulating valve should be equipped with a pressure feedback device to ensure that the air pressure in the sealing area is stable within the set value ±0.05bar range.

Installation accuracy of split components: When splicing split silicone rings, special sealant (temperature resistance ≥150℃) should be applied to the joint surface to ensure no leakage at the joint;

Operation and maintenance strategy

Daily inspection focus: Daily monitoring of air pressure, sealing area temperature (≤70℃ is normal) and leakage. When a sudden increase in dust is found, timely check the elastomer interference or dynamic ring wear.





Replacement standard for wear parts: When the thickness of the PTFE dynamic ring and static ring is worn more than 1/3 of the original thickness, the corresponding components need to be replaced in time to avoid failure of the sealing surface. When the elastomer hardens, cracks or permanently deforms (usually after 8000 hours of operation), the sealing unit should be replaced as a whole.



4. Comprehensive comparison with existing solutions

Comparing high-performance rotary shaft seals with traditional sealing solutions, it shows obvious advantages in comprehensive benefits:

Comparison dimensions	High performance rotary shaft seal	Mechanical seal	Skeleton oil seal + retaining ring
Adapt to shaft runout	≤3mm	Basically not allowed (≤0.03mm)	≤0.1mm
Average lifespan	8000-10000 hours	8000-10000 hours	1000-2000 hours
Single maintenance time	1-2 hours	4-6 hours	2-3 hours
Annual maintenance costs	Reduced by 60%	Reduced by 50%	Reduced by 30%
Applicable materials	Dust, slurry, liquid	Medium and low viscosity materials	Dry dust
Equipment modification cost	Medium-high	High	Low



For the long-term optimization of the shaft end seal of the ribbon mixer, high-performance rotary shaft seals are particularly suitable for the following scenarios: old equipment with shaft deviation (radial runout ≤ 3mm), materials containing particles or large viscosity fluctuations, and continuous production workshops that are sensitive to downtime. Through the synergy of dynamic sealing and air pressure purification, the pain point of leakage in traditional sealing methods can be fundamentally solved, achieving a dual improvement in sealing efficiency and maintenance economy.
