Bolifei Automation Technology Launches Innovative Rotary Shaft Seal Technology To Help Improve The Performance Of Auger Conveyor Equipment
2025-04-14
Recently, Jiangsu Believe Automation Technology Co.,Ltd has grandly launched a disruptive technological innovation to solve the problem of powder leakage at the shaft end of the auger conveyor and provide more reliable and efficient conveying solutions for related industries.
As an important non-flexible traction conveying equipment, the auger conveyor is widely used in the fields of minerals, feed, grain and oil, construction, etc. However, traditional equipment often has the problem of powder leakage at the shaft end during operation. The main reasons include unreasonable sealing structure design and seal damage.
In order to solve this problem, the R&D team of Jiangsu Believe Automation Technology Co.,Ltd has devoted its efforts to launch a new rotary shaft seal technology. This technology uses advanced materials such as high-temperature silicone, polyetheretherketone PEEK-1000, zirconium oxide polyetheretherketone and polytetrafluoroethylene, which makes the shaft seal perform well in high temperature, corrosion, fatigue, friction, etc., and has self-lubricating properties.
Unlike traditional mechanical seals, Believe's rotary shaft seal design takes into account the convenience of later maintenance. Users do not need to disassemble the motor, reducer and bearings, but simply remove the corresponding screws to replace severely worn accessories. This innovative design greatly reduces downtime for maintenance and improves production efficiency.

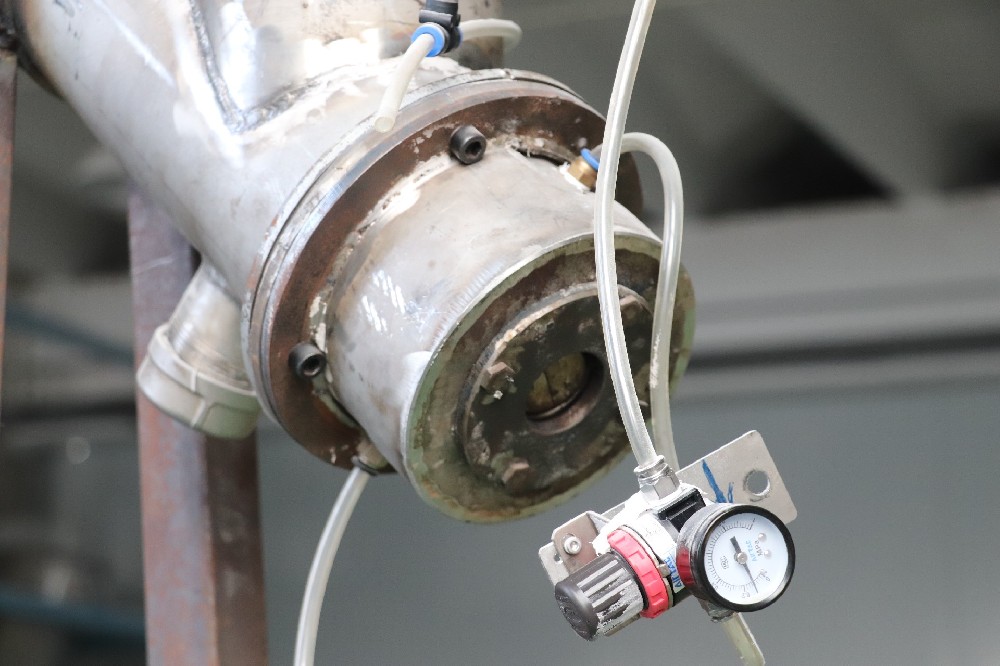

The rotary shaft seal not only uses high-temperature silicone for radial sealing, but also relies on the matching end faces of the dynamic ring and the static ring for axial sealing, and then improves the air sealing effect through the compressed air port. The housing, dynamic ring, static ring, clamp, etc. all adopt a detachable structure, which provides great convenience for later maintenance.
This innovative technology of Jiangsu Believe Automation Technology Co.,Ltd provides strong support for the performance improvement of the auger conveyor, and also brings more reliable and efficient conveying solutions to related industries. In the future development, Bolifei will continue to be committed to technological innovation and provide customers with more advanced and reliable automation solutions.
